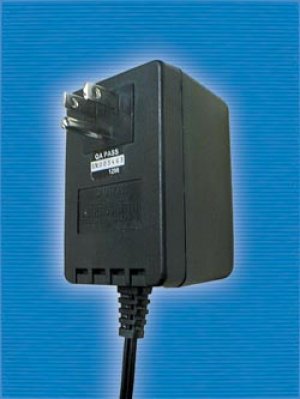

Linear Medical Adaptors. These low cost Wall Plug-In designs can provide DC output up to 100W (custom, Dual Cord Desktop). Standard features: Within each model, Output may vary from 50mA to max. Load specified, in 50 mA increments, preserving output voltage +/- 5% tolerance. Options for specifying Output Voltage Deviation from standard model add suffix -x.x to model no. Dielectric Strength: 4000VAC pri-sec; Spacing 8mm pri-sec; Leakage:<0.100mA. Input Voltage of 120 or 220/230/240 VAC 50 or 60 Hz, Output Voltage ranging from 3-48Vdc & multiple Black Polycarbonate UL94V-0 enclosure required to UL 2601-1/ CSA (cUL) 22.2 #601.1 and TUV to EN0601.

These power sources are ideal for medical Portable Equipment and other medical applications. Attractive Small Size, Proven Reliability, VERY Low Cost makes these power supplies perfect for OEM requirements. Modified & Custom are also available. Made in USA option available upon request.
